107.52KWh Integrated ESS Energy Storage Cabinet PV 50KWp Input For Commercial Building Power Optimization

107.52KWh Integrated ESS Energy Storage Cabinet PV 50KWp Input For Commercial Building Power Optimization
107.52KWh Integrated ESS Energy Storage Cabinet PV 50KWp Input For Commercial Building Power Optimization

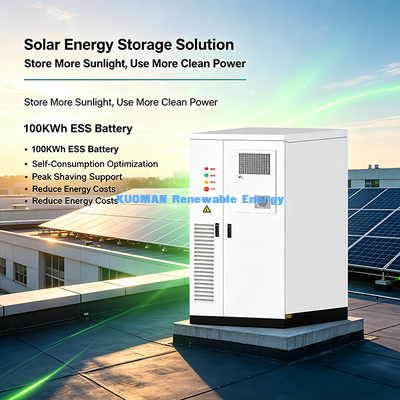

Gambar besar :  107.52KWh Integrated ESS Energy Storage Cabinet PV 50KWp Input For Commercial Building Power Optimization

Detail produk:
Tempat asal: Cina
Nama merek: KM
Sertifikasi: CE, FCC, UKCA, CB
Nomor model: 100KWH
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: USD1-100/pcs
Kemasan rincian: kemasan karton standar internasional
Waktu pengiriman: umum dua minggu, lebih banyak kuantitas berdasarkan kuantitas yang tepat
Menyediakan kemampuan: 10000 buah/bulan
Kontak

107.52KWh Integrated ESS Energy Storage Cabinet PV 50KWp Input For Commercial Building Power Optimization

Deskripsi
Kapasitas Nominal: 280ah Berat Bersih: 1750 kg
Tingkat Debit: 0,5C Suhu Operasional: -25℃ ~ 60℃
Dimensi: 1200×1355×2150mm Energi Nominal: 107,52KWh
Tegangan nominal: 384V Masukan PV: 50 kWp
tegangan PV: 200~600V Keluaran AC: 50 kW, 72 A, 154~276V, tiga fase
Jenis baterai: LiFePO4 Siklus hidup: Panjang
Menyoroti:

107.52KWh commercial energy storage cabinet

,

50KWp PV input energy storage

,

ESS cabinet for power optimization

107.52KWh Integrated ESS Energy Storage Cabinet PV 50KWp Input For Commercial Building Power Optimization
Product Features
  • Integrated all-in-one cabinet design, built-in PCS, BMS, EMS and thermal management system
  • High-safety LiFePO4 lithium iron phosphate battery cells
  • Intelligent battery management system (BMS) for cell balance, overcharge & over-discharge protection
  • Independent energy management system (EMS) supports remote monitoring & data interaction
  • Wide operating temperature range: -25℃ ~ 60℃, adapt to complex harsh environments
  • Support PV direct access: 50KWp, PV voltage range 200~600V
  • Three-phase AC output, compatible with commercial and industrial power grid standards
  • Scalable design, multiple cabinets can be paralleled to expand energy storage capacity
  • Built-in emergency stop EPO function, multi-layer electrical safety protection
  • Low maintenance design, long cycle life for continuous commercial operation
Technical Specifications
Model 100 kWh ESS Battery
Nominal Voltage 384V
Nominal Capacity 280Ah
Nominal Energy 107.52 kWh
Discharge Rate 0.5C
Dimensions 1200 × 1355 × 2150 mm
Net Weight 1750 kg
PV Input 50 kWp (kilowatt peak)
Voltage range: 200~600V
AC Output 50 kW, 72 A, 154~276V, three-phase
Operating Temperature -25°C to 60°C
Core Advantages
Save Electricity Cost
Realize peak shaving & load shifting, cut industrial and commercial electricity expense significantly
Stable Renewable Energy Storage
Store surplus solar power for night or cloudy day usage, maximize PV income
Reliable Emergency Backup Power
Protect critical production equipment from unexpected power outages
High Safety Standard
LiFePO4 cells + multi-level protection system avoid thermal runaway risks
Strong Environmental Adaptability
Work normally under extreme low and high temperature conditions
Flexible Capacity Expansion
Parallel connection supports large-scale energy storage microgrid projects
All-in-one Integrated Cabinet
Simplify installation, reduce extra construction and equipment matching cost
Carbon Neutral Solution
Help enterprises integrate clean energy, lower carbon footprint and meet sustainability targets
100KWh LiFePO4 Energy Storage System cabinet and technical diagram
Frequently Asked Questions
What is the actual usable energy of this 100KWh ESS system?
The nominal energy reaches 107.52KWh. It adopts 0.5C continuous charge & discharge design, meeting daily commercial energy storage demand.
Can this energy storage cabinet connect to solar panels directly?
Yes. Built-in PV access port supports 50KWp solar panel input with 200~600V DC voltage range, no extra external inverter required.
Is this ESS suitable for outdoor installation?
The cabinet supports indoor installation. If deployed outdoors, a sunshade and rainproof shelter is recommended to extend service life.
Can multiple 100KWh energy storage cabinets be connected in parallel?
Yes. The system supports parallel expansion. We can customize solutions according to your total energy storage capacity requirements.
