Detail produk:
|
| Siklus hidup: | 10.000 siklus | Berat: | 1200kg |
|---|---|---|---|
| Efisiensi: | 90% | Energi Nominal: | 215kWh |
| Protokol Komunikasi: | Modbus, CAN, dan Ethernet | Ukuran: | 1150 mm x 755 mm x 1550 mm |
| Kapasitas: | 100 kWh | Keluaran Daya: | 250kW |
| Nilai Tegangan: | 768v | Kapasitas Nominal: | 144A |
| Tegangan nominal: | 400V(320~460V) | Suhu Operasional: | -20°C hingga 50°C |
| Menyoroti: | Container Energy Storage System with EMS monitoring,Industrial Power Storage 1.106MWh,Commercial Energy Storage with remote monitoring |
||

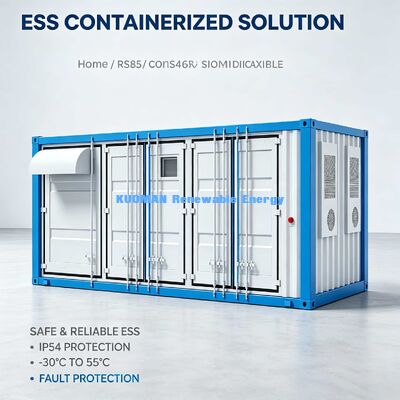

Our ESSC0500A-1106 containerized energy storage system is a standardized outdoor integrated energy storage cabinet built for large-scale renewable energy matching, peak shaving, grid stabilization and backup power supply. Adopting IP54 dustproof & waterproof enclosure, independent air duct intelligent thermal management, complete BMS & EMS communication system, it supports extreme ambient operation and fast turnkey deployment for global energy storage projects.
| DC Parameters | |
| Battery Capacity | 1.106 MWh |
|---|---|
| Battery Rack Quantity | 8 sets |
| BMS Communication | RS485 / CAN |
| DC Voltage Range | 600 ~ 850 V |
| AC Parameters | |
| Rated AC Power | 500 kW |
| Max AC Power | 550 kW |
| Rated AC Current | 722 A |
| Max AC Current | 800 A |
| DC Current Component | ＜0.5% |
| THDi | ＜3% (under rated power) |
| Rated Grid Voltage | 400 V |
| Allowable Grid Voltage | 320 ~ 460 V |
| Grid Frequency | 50 / 60 Hz, adjustable range 45~55Hz / 55~65Hz |
| Power Factor | 1 Lagging ~ 1 Leading |
| Isolation Method | No Isolation |
| General Hardware Data | |
| Ingress Protection Grade | IP54 |
| Fire Extinguishing System | Supported |
| Full Power Continuous Running Time | 2 Hours |
| Operating Temperature | -30℃ ~ 55℃ |
| Overall Dimension (W×D×H) | 12192 × 2438 × 2896 mm |
| Total Weight | 3.5 Tons |
| EMS Communication Interface | RS485, TCP/IP |
| PCS Cooling Mode | Intelligent Air Cooling with Temperature Control |
| Battery Cooling Mode | Air Conditioning Cooling |
| Max Working Altitude | 4500m (power derating over 3000m) |
| Relative Humidity | 0 ~ 95% Non-Condensing |
